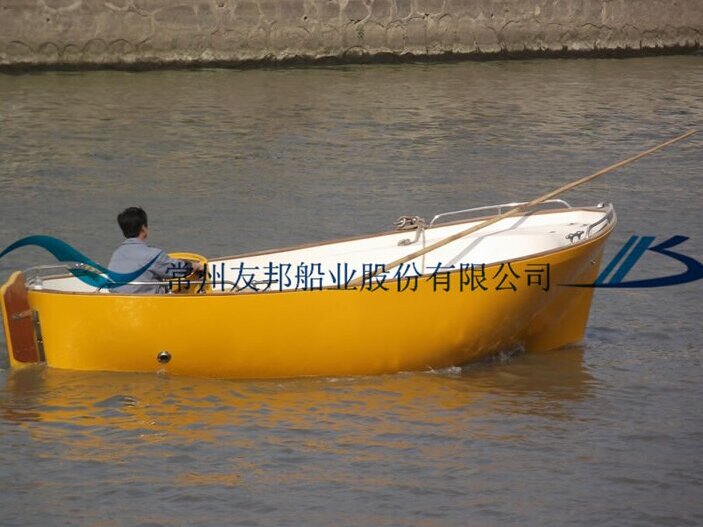

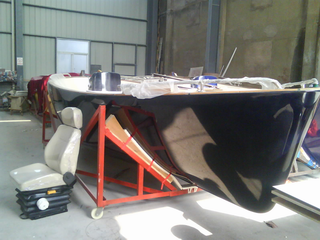

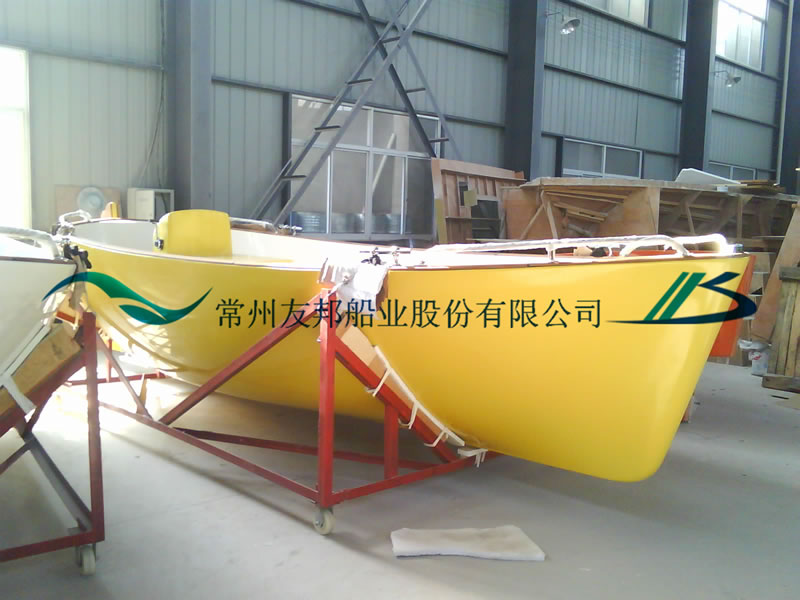

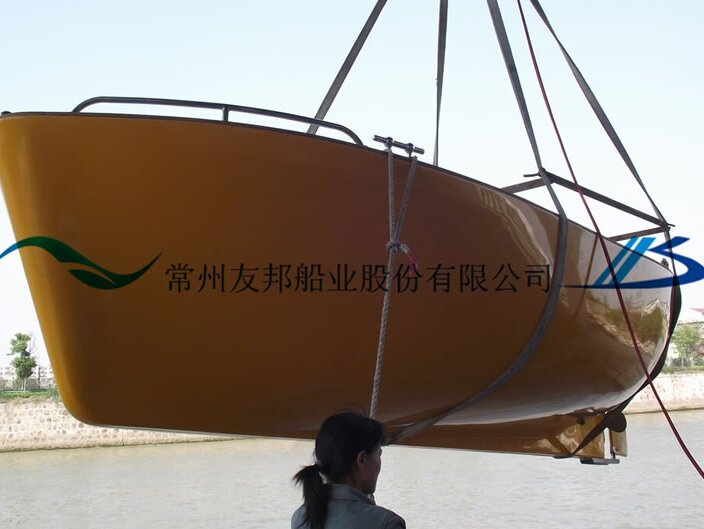

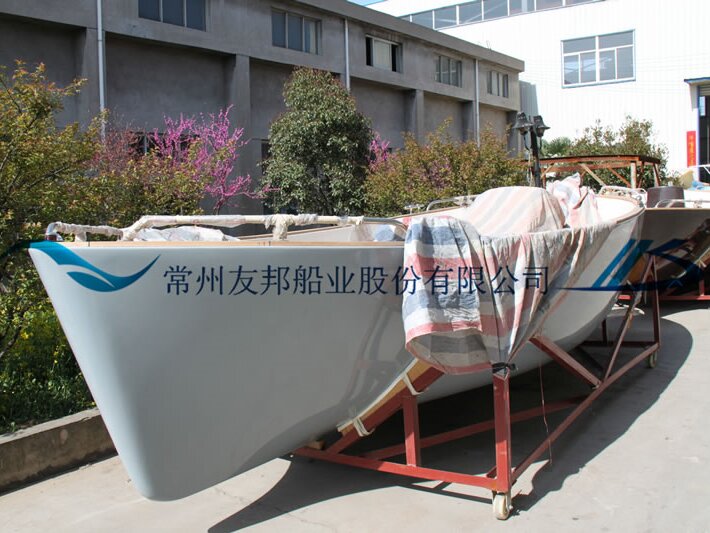

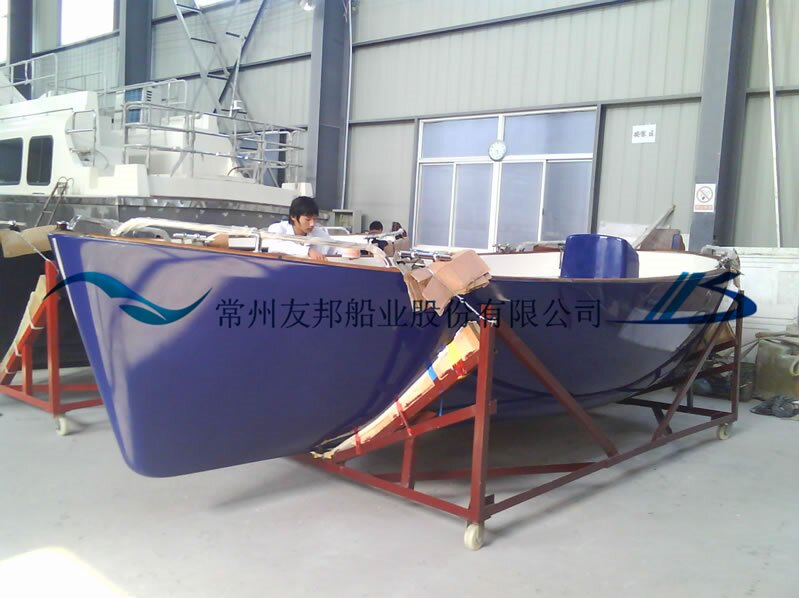

Product Description
range

Equipments list:

Dimension: 5.75 x 2.23 x 1.10 m.

Standard Equipments:

10KW electric engine

Stainless steel shaft system and copper alloy propeller.

Hydraulic steering system with 316 stainless steel steering wheel

Navigation lights 1

Battery 150 Ah/12V 6 with close off switch

Automatic bilge pump 1

Stainless steel rail, mooring cleat, hatches, hinges

Stainless steel parts and screws are 316#

Total Weight: about 660kg






Model

575 sloepen

Length overall

5.75m

Beam

2.23m

Draft depth

1.10m

Engine power and color:

According to the request.
